Saddle hall

15.25m
x
36.6m
x
7m

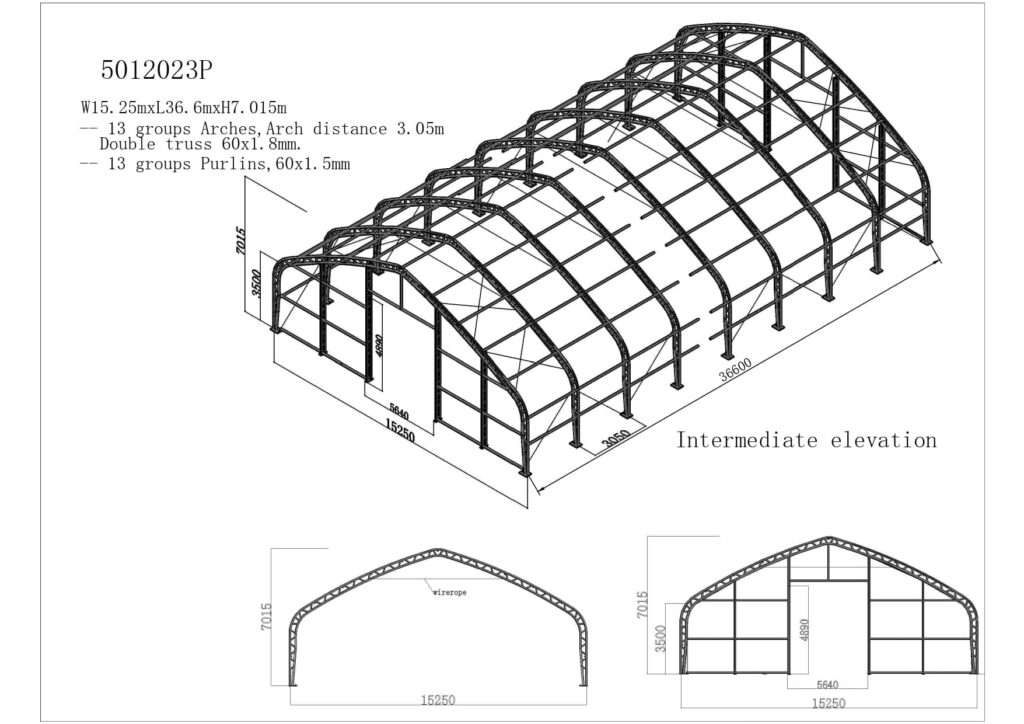

Saddle hall 15.25m x 36.6m x 7m

15.25m
x
36.6m
x
7m
  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
In stock
Delivery throughout Europe

€23,690

excl. VAT
29 139 € incl. VAT

Vous avez des

questions sur le produit ? Nous sommes là pour vous aider. Damián Halamček, MBA – Responsable
commercial +421 904 687 065 Du lundi au dimanche, de 7 h à 20 h
hagro@hagro.sk

Description and specifications

  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width15.25m
Length36.6m
Height7m
ColourGreen, White
Tarpaulin900 g/m2
Entrance width5.5 m
Entrance height4.88 m
Wind resistance100 km/h
Distance between beams3.05 m
Side wall height3.5 m

Structure

Tubes en acier galvanisé

Les tubes en acier robustes qui garantissent la solidité du hall sont protégés contre la corrosion et la rouille grâce à une galvanisation soignée, ce qui leur confère une capacité de charge maximale et une longue durée de vie.

Les tubes en acier sont :

  • Conçus pour offrir une capacité de charge élevée et une grande résistance structurelle
  • Galvanisés à chaud et résistants à la corrosion et à la rouille
  • Résistants aux chocs et aux rayures

Caractéristiques techniques :

  • Garantie de 5 ans contre la rouille
  • Diamètre des tubes : ø 70 mm x 42 mm (selon la taille du hall)
  • Épaisseur du tube : environ 2 mm (varie selon le modèle)
Ancrage

Grâce au système d'ancrage fourni, vous pouvez installer le hall sur n'importe quelle surface SANS avoir besoin d'une dalle de fondation !

  • Chaque colonne est dotée d’une plaque de base robuste (avec des trous pré-percés pour l’ancrage), ce qui renforce la stabilité du hangar et simplifie son installation
  • Le hall est ancré à l'aide de chevilles pour barres d'armature galvanisées enfoncées dans le sol selon un angle spécifique, ce qui garantit sa solidité et sa résistance au vent
  • L'ancrage dans le béton est possible à l'aide de chevilles à enfoncer / d'ancrages chimiques (non fournis)
Arcs verticaux

La structure principale du hall est constituée d’arcs verticaux en acier reliés entre eux, formant ainsi une ossature solide et durable.

  • Des tubes en acier soigneusement façonnés, dotés de perçages précis pour le boulonnage
  • Des tuyaux pleins reliant les segments entre eux, associés à des tubes en acier, renforcent la résistance du hall au vent et à la neige
  • La structure ne comporte aucun pilier de soutien au centre du hall, ce qui optimise l’espace intérieur utilisable
Raccordement de tuyaux

Des éléments de liaison solides garantissent une grande stabilité globale et une résistance aux intempéries grâce au boulonnage soigné des différentes pièces structurelles à l'aide d'écrous autobloquants, ce qui réduit les coûts d'entretien.

Pièces constitutives des arches :

  • Emboîtées les unes dans les autres
  • Assemblées à l’aide de 2 boulons avec écrous autobloquants (c’est-à-dire deux fois)

Tubes horizontaux en acier :

  • Raccordés à l’arc vertical à l’aide d’un boulon robuste et d’un écrou autobloquant

Contreventement du hall :

  • Le hall bénéficie d’une résistance supplémentaire grâce à des tubes d’acier ou des câbles d’acier de contreventement (selon la structure), garantissant sa stabilité même en cas de vents violents
Possibilité d’extension

Vous pouvez agrandir le hall de la tente à volonté, « à l'infini », et ainsi augmenter la surface de stockage de celui-ci.

  • Les halls de même largeur peuvent être agrandis
  • Pour cela, les halls doivent être placés les uns derrière les autres
  • Le bord de la bâche du premier hall est rabattu sur la première arche du hall adjacent
  • Ensuite, les bâches sont fixées à l’aide de cordes ou de tendeurs à cliquet (selon la taille du hall)

PVC tarpaulin and entrances

Thanks to its dense inner fabric, the 3-layer PVC tarpaulin is extremely tear-resistant and lasts for a very long time. It is also flame-retardant and blocks harmful UV radiation.

What makes our tarpaulins stand out:

  • Thanks to quality materials they are 100% waterproof
  • Up to 3x more durable than standard PVC tarpaulins (resistant to rain, snow, mould, wind and damage)
  • They have a bottom “skirt” for protection against moisture and wind
  • They let natural light through and block UV radiation
  • 3-layer tarpaulin: the bottom and top layers are PVC, the middle layer is a non-elastic fabric

Specification:

  • Various tarpaulin weights (thicknesses): 650 g/m² (20-year lifespan), 750 g/m² (22-year lifespan), 900 g/m² (25-year lifespan)
  • Available in white or green.

Once the frame is assembled, the main (roof) tarpaulin is pulled over the structure and fixed to the arch bases using a robust ratchet tensioning system.

Installing the main tarpaulin is very easy:

  • The roof tarpaulin is pulled over the frame (using ropes)
  • The tarpaulin is then tied with rope to the first and last arch and tensioned using the straps and ratchets.
  • The end tarpaulins (front and rear entrance) are fixed to the frame with the supplied rope / straps
  • Our tent halls have a manufacturer-stated lifespan of 20 years or more.
  • Thanks to the special 3-layer PVC tarpaulin the hall is durable and shows almost no wear over time.
  • Thanks to the shape of the hall, neither dirt nor snow stays on it
  • High-quality zips and stainless brass eyelets
  • Easy-to-wash tarpaulin with minimal maintenance
  • The hall can also be heated or thermally insulated (by a third-party company)

The package also includes 2 end tarpaulins together with 2 entrance gates

Vehicle access and quick entry are ensured by:

  • Entrances on both ends of the hall (front and rear)
  • Extra-large door dimensions for vehicles
  • Roll-up doors opened with a manual winch / rope (depending on the hall type)
  • The option to cut any number and size of entrances into the hall (including the sides)
  • The option not to fit the front and rear ends, turning the hall into a “tunnel” and gaining the full entrance width and height

Installation

  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

Package contents

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Accessories

  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width: 15.25m
Length: 36.6m
Height: 7m
Colour: Green, White
Tarpaulin: 900 g/m2
Entrance width: 5.5 m
Entrance height: 4.88 m
Wind resistance: 100 km/h
Distance between beams: 3.05 m
Side wall height: 3.5 m
  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Extended product description

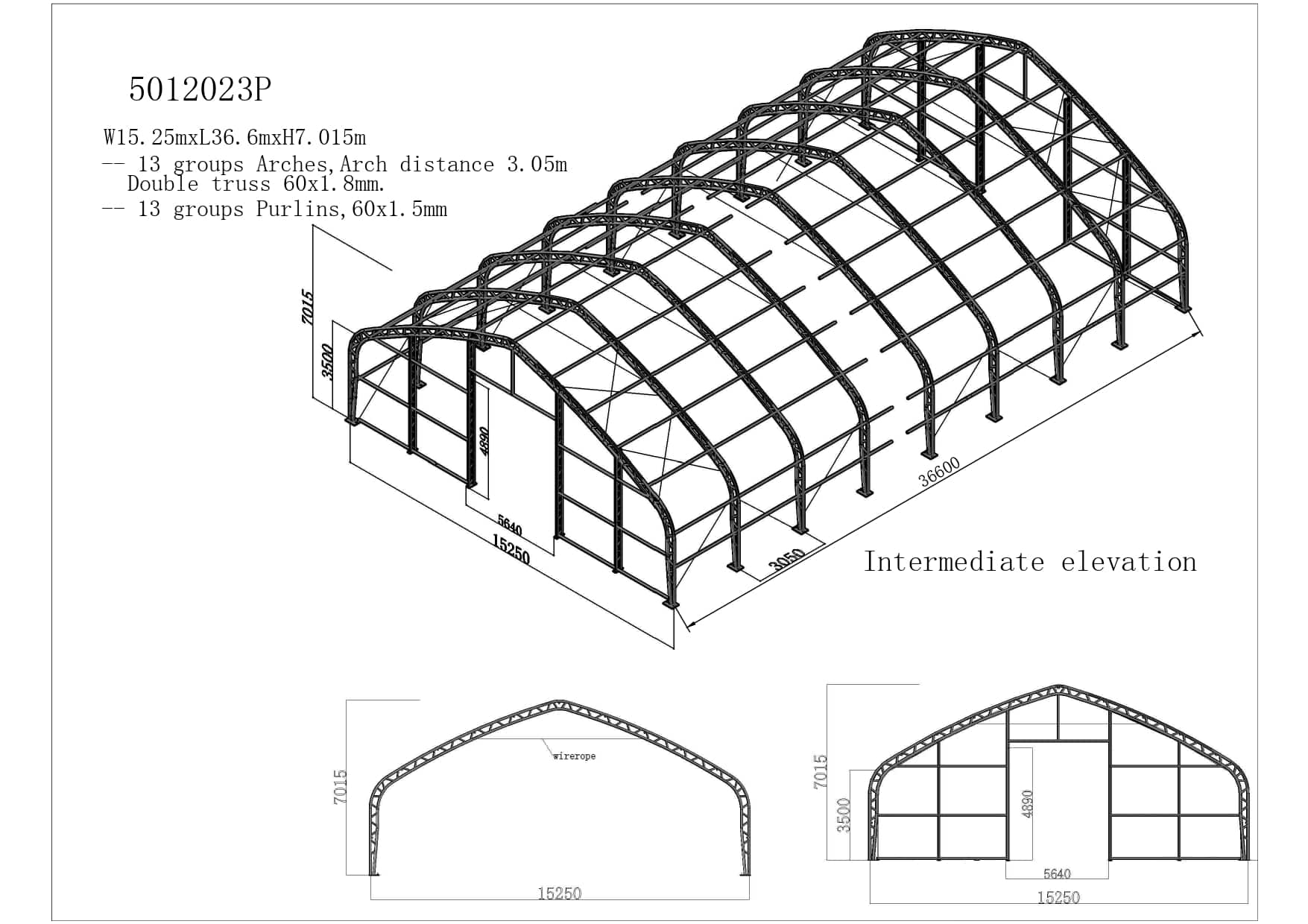

DESCRIPTION OF THE TENT HALL

The tent hall has a really solid and reliable construction – truss with hot-dip galvanizing . These features ensure that the hall does not rust and that its lifespan is long. Thanks to this, the investment in it is profitable.

The tent hall is strong, durable and stable thanks to the curved tubes with a diameter of ø 60 × 1.8 mm . They will not be surprised even by the harsh weather conditions.

Another important parameter is the connecting tubes with a diameter of ø 60 × 1.5 mm , which play a key role in ensuring a firm connection of the individual parts of the structure. Their role is also to ensure the stability of the hall.

Getting into the hall is really easy, because our tent hall has mechanical doors on both sides , so you can comfortably enter it or store necessary things there, such as machines, materials, and other equipment.

The height of the straight part of the walls reaches up to 3.5 meters , which provides enough space for a wide range of uses, from storage to various industrial or agricultural activities.

The entire hall is designed with durability and long-term use in mind. Its lifespan is up to 25 years , making it a cost-effective solution for long-term needs.

The meaning of the weight of a PVC tarpaulin 900 g/m²

Why should you choose a 900 g/m² PVC tarpaulin? This type of tarpaulin combines high quality, durability and an extremely long lifespan, which can reach up to 25 years.

Protection from wind and snow : Thanks to its strength, the PVC tarpaulin can withstand not only intense winds (up to 100 km/h), but also higher loads, such as snow.

Easy to repair : It is possible that the PVC tarpaulin on your tent hall will tear over time. But that is no reason to worry, as you can repair it by welding.

Extreme durability : PVC tarpaulin is made of polyester fabric covered with a layer of PVC. This three-layer composition includes a top and bottom layer of PVC, between which there is a strong, non-elastic fabric. Such a structure ensures that the tarpaulin is impermeable, waterproof and does not lose its shape even after prolonged exposure to adverse conditions.

Adapting to all conditions : Whether the hall is exposed to strong winds, rain or freezing temperatures, the PVC tarpaulin retains its properties and reliably protects your property. It even meets fire safety standards, being classified as Class B in reaction to fire.

Do you want to build a hall yourself? No problem! We include detailed instructions with each of our tent halls, thanks to which everyone can handle the assembly. Our hall is designed so that even a beginner can assemble it without special tools or skills. Just follow our simple instructions and your new hall will be worth a shot.

If you would like us to build this tent hall for you, please contact us for a price.
