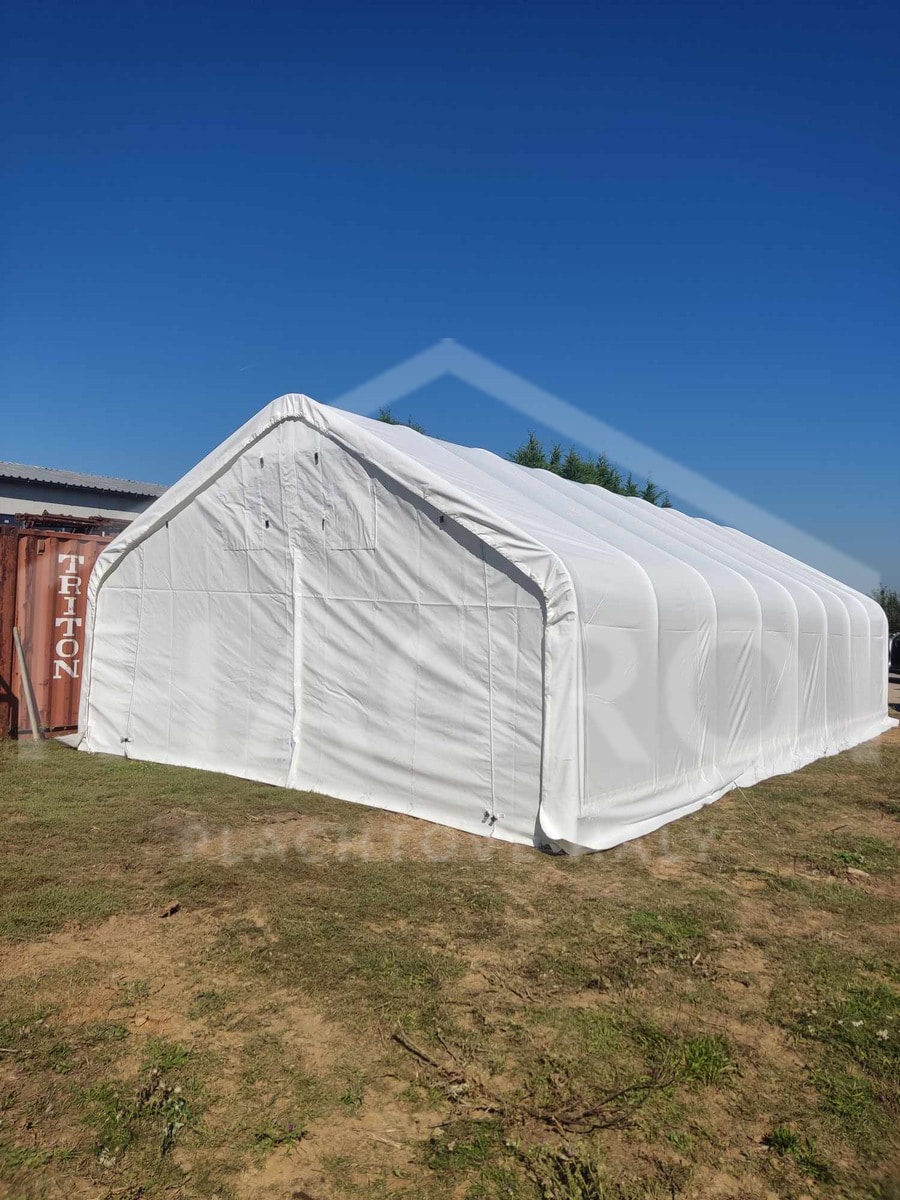

Saddle hall

6.1m
x
10.67m
x
3.66m

Saddle hall 6.1m x 10.67m x 3.66m

6.1m
x
10.67m
x
3.66m
  • Openable entrances at both ends
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
In stock
Delivery throughout Europe

€2,590

excl. VAT
3 186 € incl. VAT

Vous avez des

questions sur le produit ? Nous sommes là pour vous aider. Damián Halamček, MBA – Responsable
commercial +421 904 687 065 Du lundi au dimanche, de 7 h à 20 h
hagro@hagro.sk

Description and specifications

  • Openable entrances at both ends
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width6.1m
Length10.67m
Height3.66m
ColourGreen, White
Tarpaulin750 g/m2
Entrance width5.5 m
Entrance height3.05 m
Wind resistance100 km/h
Distance between beams1.525 m
Side wall height2 m

Structure

Tubes en acier galvanisé

Les tubes en acier robustes qui garantissent la solidité du hall sont protégés contre la corrosion et la rouille grâce à une galvanisation soignée, ce qui leur confère une capacité de charge maximale et une longue durée de vie.

Les tubes en acier sont :

  • Conçus pour offrir une capacité de charge élevée et une grande résistance structurelle
  • Galvanisés à chaud et résistants à la corrosion et à la rouille
  • Résistants aux chocs et aux rayures

Caractéristiques techniques :

  • Garantie de 5 ans contre la rouille
  • Diamètre des tubes : ø 70 mm x 42 mm (selon la taille du hall)
  • Épaisseur du tube : environ 2 mm (varie selon le modèle)
Ancrage

Grâce au système d'ancrage fourni, vous pouvez installer le hall sur n'importe quelle surface SANS avoir besoin d'une dalle de fondation !

  • Chaque colonne est dotée d’une plaque de base robuste (avec des trous pré-percés pour l’ancrage), ce qui renforce la stabilité du hangar et simplifie son installation
  • Le hall est ancré à l'aide de chevilles pour barres d'armature galvanisées enfoncées dans le sol selon un angle spécifique, ce qui garantit sa solidité et sa résistance au vent
  • L'ancrage dans le béton est possible à l'aide de chevilles à enfoncer / d'ancrages chimiques (non fournis)

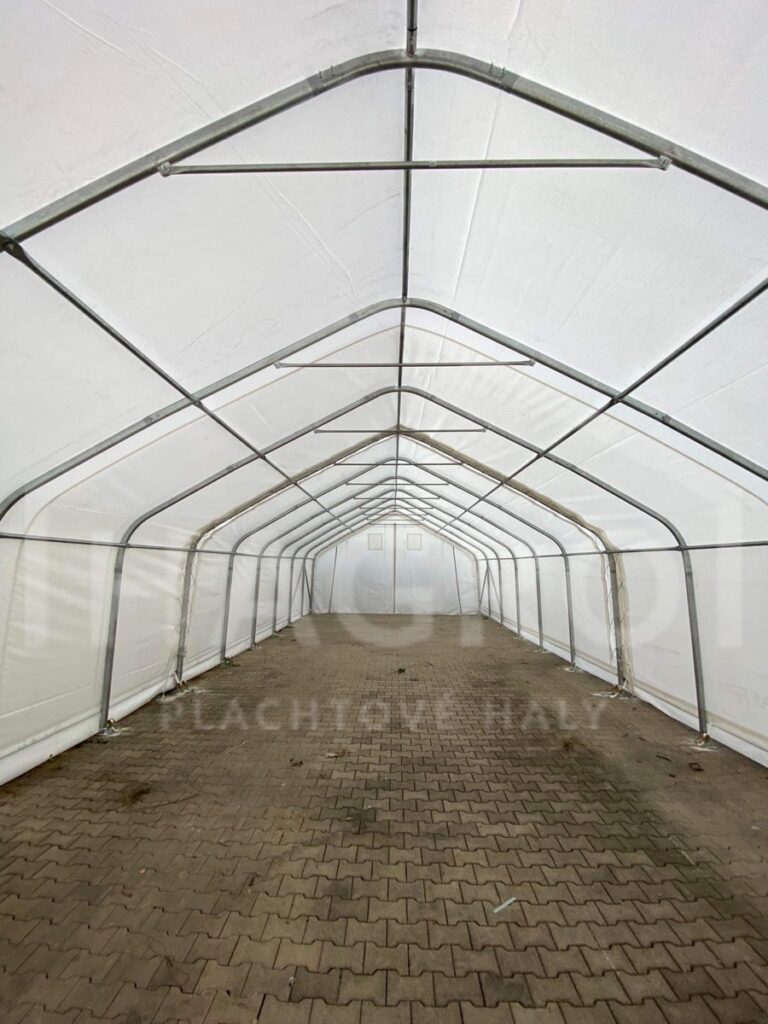

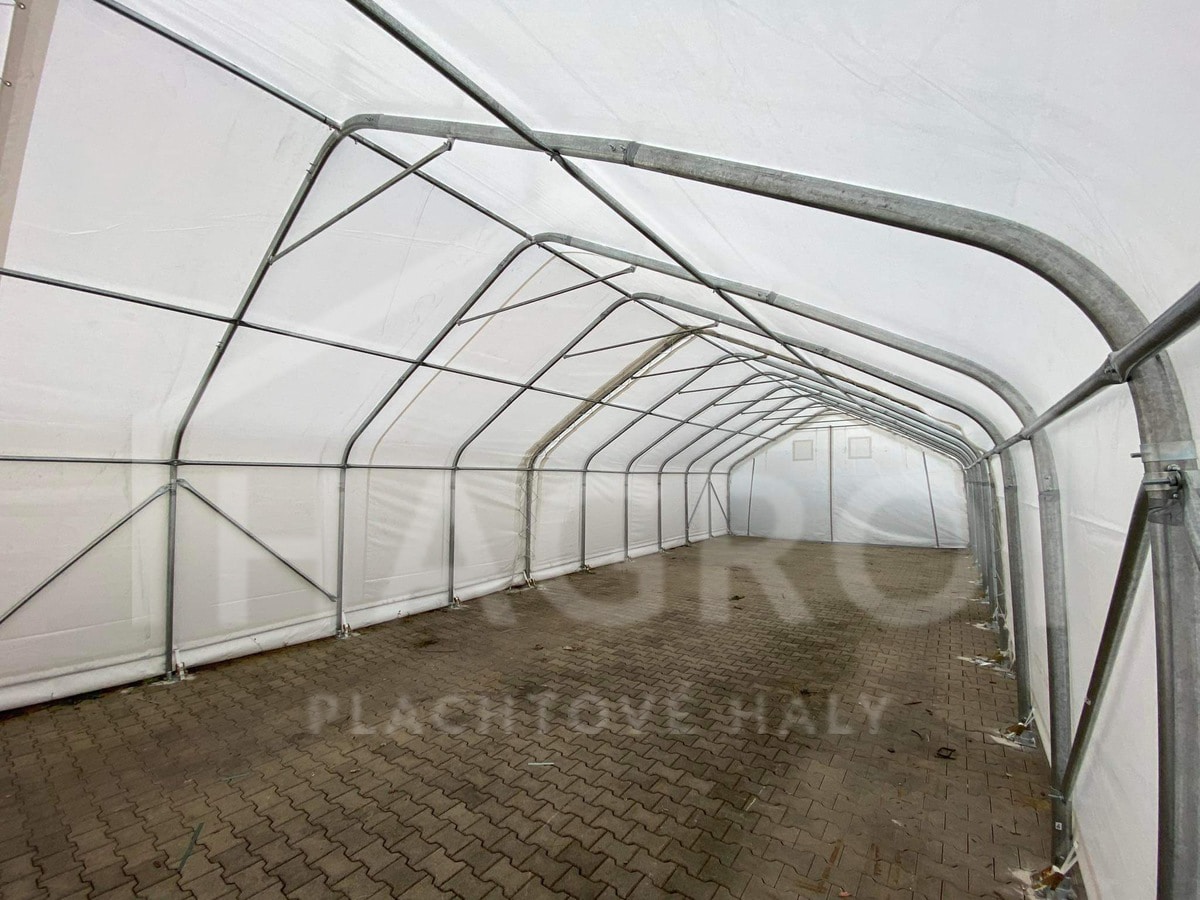

Arcs verticaux

La structure principale du hall est constituée d’arcs verticaux en acier reliés entre eux, formant ainsi une ossature solide et durable.

  • Des tubes en acier soigneusement façonnés, dotés de perçages précis pour le boulonnage
  • Des tuyaux pleins reliant les segments entre eux, associés à des tubes en acier, renforcent la résistance du hall au vent et à la neige
  • La structure ne comporte aucun pilier de soutien au centre du hall, ce qui optimise l’espace intérieur utilisable
Raccordement de tuyaux

Des éléments de liaison solides garantissent une grande stabilité globale et une résistance aux intempéries grâce au boulonnage soigné des différentes pièces structurelles à l'aide d'écrous autobloquants, ce qui réduit les coûts d'entretien.

Pièces constitutives des arches :

  • Emboîtées les unes dans les autres
  • Assemblées à l’aide de 2 boulons avec écrous autobloquants (c’est-à-dire deux fois)

Tubes horizontaux en acier :

  • Raccordés à l’arc vertical à l’aide d’un boulon robuste et d’un écrou autobloquant

Contreventement du hall :

  • Le hall bénéficie d’une résistance supplémentaire grâce à des tubes d’acier ou des câbles d’acier de contreventement (selon la structure), garantissant sa stabilité même en cas de vents violents
Possibilité d’extension

Vous pouvez agrandir le hall de la tente à volonté, « à l'infini », et ainsi augmenter la surface de stockage de celui-ci.

  • Les halls de même largeur peuvent être agrandis
  • Pour cela, les halls doivent être placés les uns derrière les autres
  • Le bord de la bâche du premier hall est rabattu sur la première arche du hall adjacent
  • Ensuite, les bâches sont fixées à l’aide de cordes ou de tendeurs à cliquet (selon la taille du hall)

Structure

Tubes en acier galvanisé

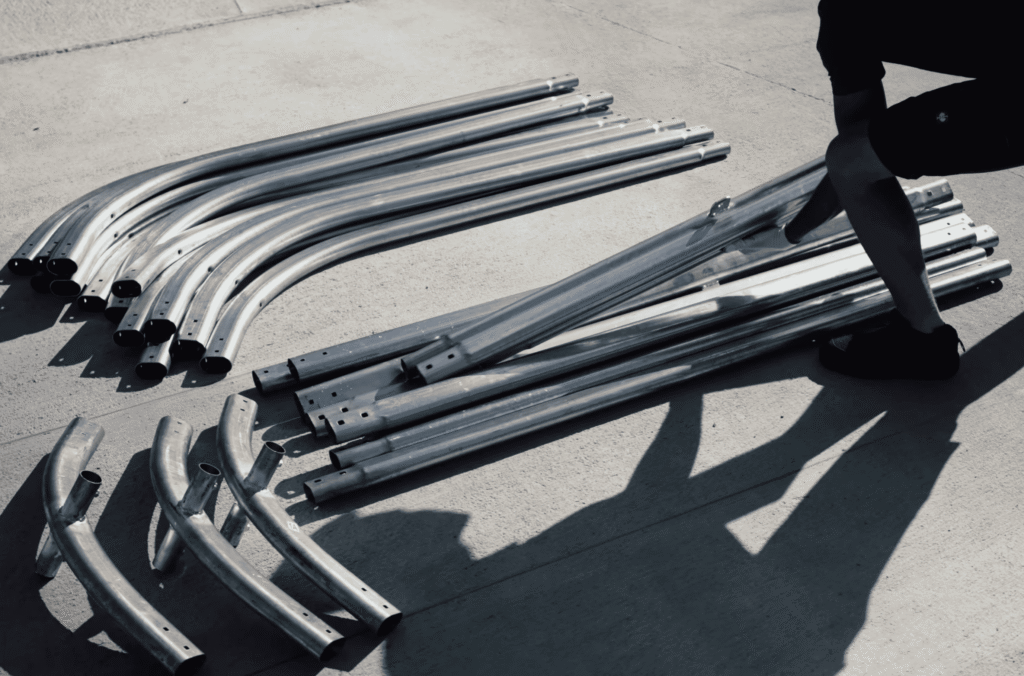

Oceľové oblúky konštrukcie sedlovej haly Hagro

Les tubes en acier

robustes qui confèrent à la halle sa solidité sont soigneusement galvanisés à chaud, ce qui les protège contre la corrosion et la rouille et garantit une capacité de charge maximale ainsi qu’une longue durée de vie. Ces tubes en acier sont :

  • conçus pour supporter des charges élevées et assurer la rigidité du hall
  • galvanisés à chaud, résistants à la corrosion et à la rouille
  • résistants aux chocs et aux rayures

Caractéristiques techniques :

  • Garantie de 5 ans contre la rouille
  • Diamètre des tubes : ø 70 mm x 42 mm (en fonction de la taille du hall)
  • Épaisseur de la paroi du tube : environ 2 mm (selon le hall)
Ancrage

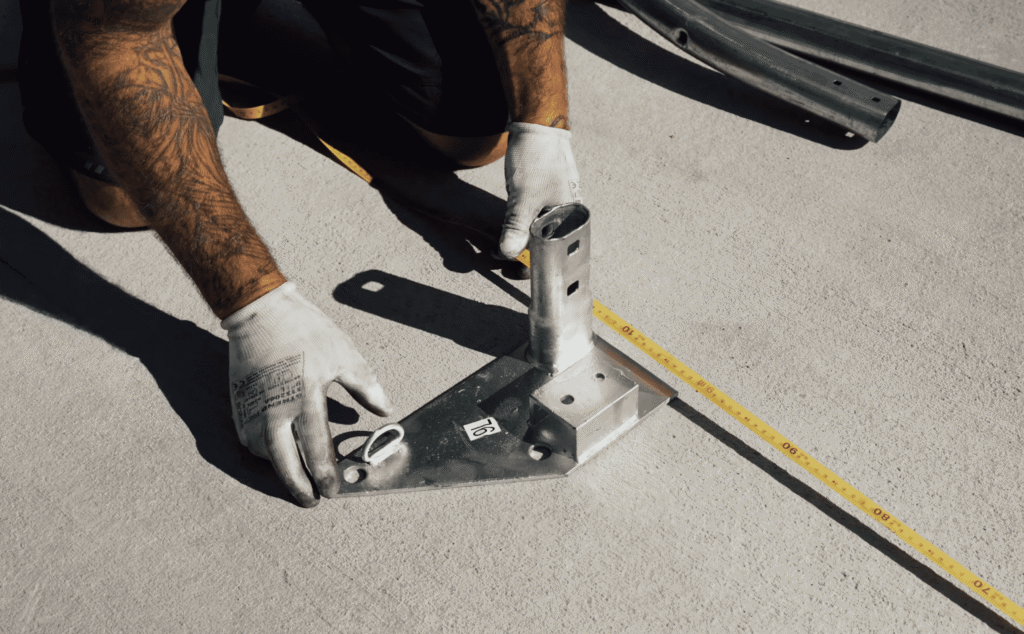

Montáž oceľového prvku konštrukcie sedlovej haly Hagro

Grâce au système d'ancrage fourni, vous pouvez monter le hall sur n'importe quelle surface SANS dalle de fondation !

  • Chaque poteau est doté d'une plaque de base robuste (avec des trous de fixation pré-percés) qui renforce la stabilité du hangar et facilite son montage.
  • Le hall est ancré à l'aide de piquets d'ancrage en barres d'armature galvanisées enfoncés dans le sol selon un angle spécifique, ce qui assure la solidité de la structure et sa résistance au vent.
  • L'ancrage dans le béton est possible à l'aide de chevilles à enfoncer ou de chevilles chimiques (non fournies).
Faisceaux

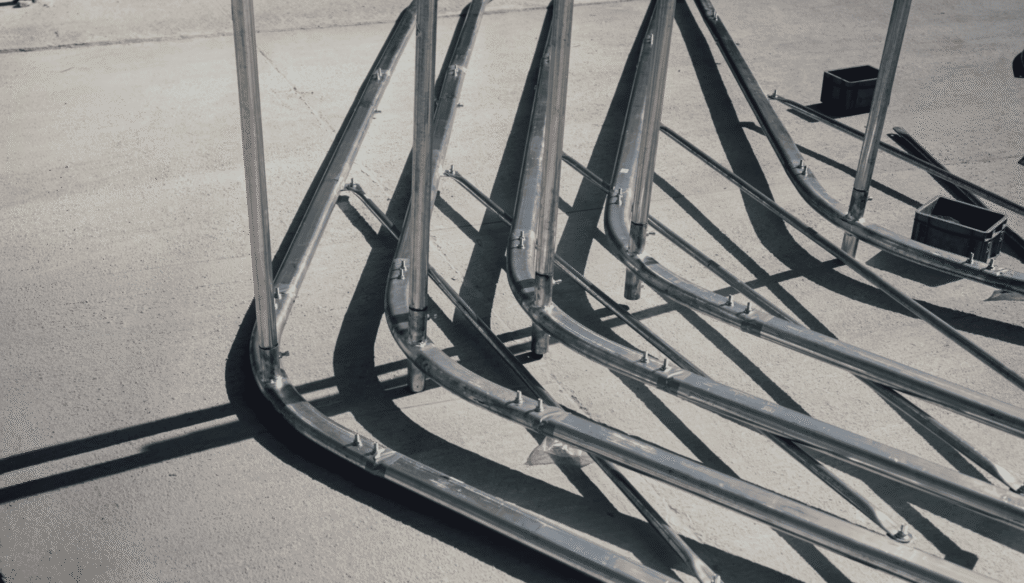

Pozinkované oceľové rúry konštrukcie sedlovej haly Hagro

La structure principale du hall est constituée d’arcs verticaux en acier reliés les uns aux autres, formant ainsi une ossature solide et durable.

  • Des tubes en acier soigneusement façonnés, dotés de trous de boulonnage positionnés avec précision
  • Les tubes de liaison solides entre les segments, associés aux pannes en acier, renforcent la résistance du hall au vent et à la neige.
  • La structure ne comporte aucun pilier de soutien au centre, ce qui optimise l'espace utile à l'intérieur du hall.
Raccords de tuyaux

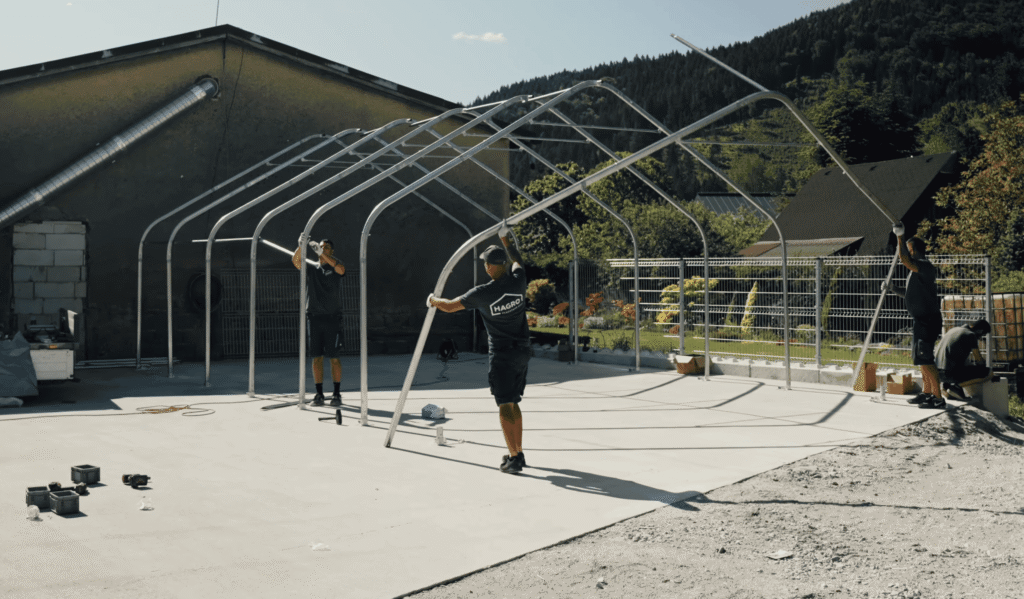

Zostavená konštrukcia sedlovej haly Hagro na betónovej ploche

Des éléments de liaison

solides garantissent une grande stabilité globale et une résistance aux intempéries : toutes les parties de la structure sont solidement assemblées à l'aide d'écrous autobloquants, ce qui permet également de limiter les coûts d'entretien. Les différentes sections d'arc sont :

  • emboîtées les unes dans les autres
  • vissées à l'aide de 2 boulons et d'écrous autobloquants (c'est-à-dire deux fois)

Tubes horizontaux en acier :

  • sont reliés à l’arc vertical à l’aide d’un boulon robuste et d’un écrou autobloquant

Contreventement du hall :

  • Le hall bénéficie d’une rigidité supplémentaire grâce à des tubes d’acier ou des câbles d’acier de contreventement (selon la structure), qui lui assurent une stabilité même en cas de vent violent.
Possibilité d’extension

Le hangar en bâche peut être agrandi « à l'infini » afin d'augmenter la surface de stockage du hangar.

  • Seuls les hangars de même largeur peuvent être raccordés
  • Pour cela, les hangars doivent être placés les uns derrière les autres
  • Le bord de la bâche du premier hangar est rabattu sur la première arche du hangar à raccorder
  • Les bâches sont ensuite fixées à l’aide d’une corde ou de sangles à cliquet (selon la taille du hangar)

PVC tarpaulin and entrances

Thanks to its dense inner fabric, the 3-layer PVC tarpaulin is extremely tear-resistant and lasts for a very long time. It is also flame-retardant and blocks harmful UV radiation.

What makes our tarpaulins stand out:

  • Thanks to quality materials they are 100% waterproof
  • Up to 3x more durable than standard PVC tarpaulins (resistant to rain, snow, mould, wind and damage)
  • They have a bottom “skirt” for protection against moisture and wind
  • They let natural light through and block UV radiation
  • 3-layer tarpaulin: the bottom and top layers are PVC, the middle layer is a non-elastic fabric

Specification:

  • Various tarpaulin weights (thicknesses): 650 g/m² (20-year lifespan), 750 g/m² (22-year lifespan), 900 g/m² (25-year lifespan)
  • Available in white or green.

Once the frame is assembled, the main (roof) tarpaulin is pulled over the structure and fixed to the arch bases using a robust ratchet tensioning system.

Installing the main tarpaulin is very easy:

  • The roof tarpaulin is pulled over the frame (using ropes)
  • The tarpaulin is then tied with rope to the first and last arch and tensioned using the straps and ratchets.
  • The end tarpaulins (front and rear entrance) are fixed to the frame with the supplied rope / straps
  • Our tent halls have a manufacturer-stated lifespan of 20 years or more.
  • Thanks to the special 3-layer PVC tarpaulin the hall is durable and shows almost no wear over time.
  • Thanks to the shape of the hall, neither dirt nor snow stays on it
  • High-quality zips and stainless brass eyelets
  • Easy-to-wash tarpaulin with minimal maintenance
  • The hall can also be heated or thermally insulated (by a third-party company)

The package also includes 2 end tarpaulins together with 2 entrance gates

Vehicle access and quick entry are ensured by:

  • Entrances on both ends of the hall (front and rear)
  • Extra-large door dimensions for vehicles
  • Roll-up doors opened with a manual winch / rope (depending on the hall type)
  • The option to cut any number and size of entrances into the hall (including the sides)
  • The option not to fit the front and rear ends, turning the hall into a “tunnel” and gaining the full entrance width and height

Installation

  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

Package contents

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Accessories

  • Openable entrances at both ends
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width: 6.1m
Length: 10.67m
Height: 3.66m
Colour: Green, White
Tarpaulin: 750 g/m2
Entrance width: 5.5 m
Entrance height: 3.05 m
Wind resistance: 100 km/h
Distance between beams: 1.525 m
Side wall height: 2 m
  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Extended product description

DESCRIPTION OF THE TENT HALL

Are you looking for a reliable and durable solution for your storage space or production hall? Our tent hall is designed to withstand all weather conditions and provide you with long-term and safe storage space.

Important parameters about the tent hall

  • Hot-dip galvanizing : Protects the structure from corrosion and ensures a long service life.
  • Arched tubes : They guarantee stability and resistance to wind and snow loads.
  • Mechanical doors : If you want to get into the hall or store something in it, thanks to the mechanical doors on both sides, it is no problem and accessibility is really easy.
  • PVC tarpaulin 650 g/m2 : Waterproof, UV resistant and easy to repair.
  • Long life of the hall : Up to 25 years.

PVC tarpaulin with a weight of 750 g/m2 is an excellent material, characterized by exceptional durability and a long service life, which can reach up to 20 years. This material has been specially designed to handle even the most demanding conditions, including extremely strong winds (100 km/h), providing reliable protection in any situation.

The tarpaulin is made of high-quality polyester fabric , which is coated with a special PVC layer, creating a three-layer structure . The upper and lower layers are made of PVC, while the middle layer is made of a strong, non-elastic fabric, which ensures the stability and durability of the entire tarpaulin. This sophisticated material is not only waterproof and water-resistant, but also retains its dimensions without deforming or reducing its strength. In the event that the tarpaulin is accidentally damaged, it can be easily repaired by welding, which extends its service life and functionality.

In addition to these features, the tarpaulin is enriched with other interesting features that make it an ideal solution for various conditions. UV resistance ensures that the material will not be damaged even with prolonged exposure to sunlight. The Class B fire reaction classification also provides increased safety in the event of a fire . In addition, the tarpaulin can handle a wide range of climatic conditions, which means that it is reliable and effective even in difficult weather conditions . Whether it is strong winds of up to 100 km/h, snowfall, or other extremes, this tarpaulin is ready to protect your equipment and material.

The price of this tent hall does not include its assembly .

You can assemble the hall yourself, because we provide clear instructions for our halls and you do not need special knowledge or any special equipment to build it.

If you are interested in installing a tent hall, contact us and we will provide you with a quote for this installation.
