Saddle hall

9.15m
x
12.2m
x
6.1m

Saddle hall 9.15m x 12.2m x 6.1m

9.15m
x
12.2m
x
6.1m
  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
In stock
Delivery throughout Europe

€6,690

excl. VAT
8 229 € incl. VAT

Vous avez des

questions sur le produit ? Nous sommes là pour vous aider. Damián Halamček, MBA – Responsable
commercial +421 904 687 065 Du lundi au dimanche, de 7 h à 20 h
hagro@hagro.sk

Description and specifications

  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width9.15m
Length12.2m
Height6.1m
ColourGreen, White
Tarpaulin900 g/m2
Entrance width4 m
Entrance height3.95 m
Wind resistance100 km/h
Distance between beams3.05 m
Side wall height3.6 m

Structure

Tubes en acier galvanisé

Les tubes en acier robustes qui garantissent la solidité du hall sont protégés contre la corrosion et la rouille grâce à une galvanisation soignée, ce qui leur confère une capacité de charge maximale et une longue durée de vie.

Les tubes en acier sont :

  • Conçus pour offrir une capacité de charge élevée et une grande résistance structurelle
  • Galvanisés à chaud et résistants à la corrosion et à la rouille
  • Résistants aux chocs et aux rayures

Caractéristiques techniques :

  • Garantie de 5 ans contre la rouille
  • Diamètre des tubes : ø 70 mm x 42 mm (selon la taille du hall)
  • Épaisseur du tube : environ 2 mm (varie selon le modèle)
Ancrage

Grâce au système d'ancrage fourni, vous pouvez installer le hall sur n'importe quelle surface SANS avoir besoin d'une dalle de fondation !

  • Chaque colonne est dotée d’une plaque de base robuste (avec des trous pré-percés pour l’ancrage), ce qui renforce la stabilité du hangar et simplifie son installation
  • Le hall est ancré à l'aide de chevilles pour barres d'armature galvanisées enfoncées dans le sol selon un angle spécifique, ce qui garantit sa solidité et sa résistance au vent
  • L'ancrage dans le béton est possible à l'aide de chevilles à enfoncer / d'ancrages chimiques (non fournis)
Arcs verticaux

La structure principale du hall est constituée d’arcs verticaux en acier reliés entre eux, formant ainsi une ossature solide et durable.

  • Des tubes en acier soigneusement façonnés, dotés de perçages précis pour le boulonnage
  • Des tuyaux pleins reliant les segments entre eux, associés à des tubes en acier, renforcent la résistance du hall au vent et à la neige
  • La structure ne comporte aucun pilier de soutien au centre du hall, ce qui optimise l’espace intérieur utilisable
Raccordement de tuyaux

Des éléments de liaison solides garantissent une grande stabilité globale et une résistance aux intempéries grâce au boulonnage soigné des différentes pièces structurelles à l'aide d'écrous autobloquants, ce qui réduit les coûts d'entretien.

Pièces constitutives des arches :

  • Emboîtées les unes dans les autres
  • Assemblées à l’aide de 2 boulons avec écrous autobloquants (c’est-à-dire deux fois)

Tubes horizontaux en acier :

  • Raccordés à l’arc vertical à l’aide d’un boulon robuste et d’un écrou autobloquant

Contreventement du hall :

  • Le hall bénéficie d’une résistance supplémentaire grâce à des tubes d’acier ou des câbles d’acier de contreventement (selon la structure), garantissant sa stabilité même en cas de vents violents
Possibilité d’extension

Vous pouvez agrandir le hall de la tente à volonté, « à l'infini », et ainsi augmenter la surface de stockage de celui-ci.

  • Les halls de même largeur peuvent être agrandis
  • Pour cela, les halls doivent être placés les uns derrière les autres
  • Le bord de la bâche du premier hall est rabattu sur la première arche du hall adjacent
  • Ensuite, les bâches sont fixées à l’aide de cordes ou de tendeurs à cliquet (selon la taille du hall)

PVC tarpaulin and entrances

Thanks to its dense inner fabric, the 3-layer PVC tarpaulin is extremely tear-resistant and lasts for a very long time. It is also flame-retardant and blocks harmful UV radiation.

What makes our tarpaulins stand out:

  • Thanks to quality materials they are 100% waterproof
  • Up to 3x more durable than standard PVC tarpaulins (resistant to rain, snow, mould, wind and damage)
  • They have a bottom “skirt” for protection against moisture and wind
  • They let natural light through and block UV radiation
  • 3-layer tarpaulin: the bottom and top layers are PVC, the middle layer is a non-elastic fabric

Specification:

  • Various tarpaulin weights (thicknesses): 650 g/m² (20-year lifespan), 750 g/m² (22-year lifespan), 900 g/m² (25-year lifespan)
  • Available in white or green.

Once the frame is assembled, the main (roof) tarpaulin is pulled over the structure and fixed to the arch bases using a robust ratchet tensioning system.

Installing the main tarpaulin is very easy:

  • The roof tarpaulin is pulled over the frame (using ropes)
  • The tarpaulin is then tied with rope to the first and last arch and tensioned using the straps and ratchets.
  • The end tarpaulins (front and rear entrance) are fixed to the frame with the supplied rope / straps
  • Our tent halls have a manufacturer-stated lifespan of 20 years or more.
  • Thanks to the special 3-layer PVC tarpaulin the hall is durable and shows almost no wear over time.
  • Thanks to the shape of the hall, neither dirt nor snow stays on it
  • High-quality zips and stainless brass eyelets
  • Easy-to-wash tarpaulin with minimal maintenance
  • The hall can also be heated or thermally insulated (by a third-party company)

The package also includes 2 end tarpaulins together with 2 entrance gates

Vehicle access and quick entry are ensured by:

  • Entrances on both ends of the hall (front and rear)
  • Extra-large door dimensions for vehicles
  • Roll-up doors opened with a manual winch / rope (depending on the hall type)
  • The option to cut any number and size of entrances into the hall (including the sides)
  • The option not to fit the front and rear ends, turning the hall into a “tunnel” and gaining the full entrance width and height

Installation

  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

Package contents

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Accessories

  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width: 9.15m
Length: 12.2m
Height: 6.1m
Colour: Green, White
Tarpaulin: 900 g/m2
Entrance width: 4 m
Entrance height: 3.95 m
Wind resistance: 100 km/h
Distance between beams: 3.05 m
Side wall height: 3.6 m
  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Extended product description

Product description:

Unlike conventional shelters, which are only intended for temporary use, this tent hall is a reliable and durable solution for demanding operating conditions. Its steel frame is made of a lattice structure with a hot-dip galvanizing surface treatment , which serves as effective protection against corrosion. Thanks to this, the hall will retain its functionality even after decades of use – it is a stable and well-thought-out investment that reduces maintenance costs and extends the life of the entire system.

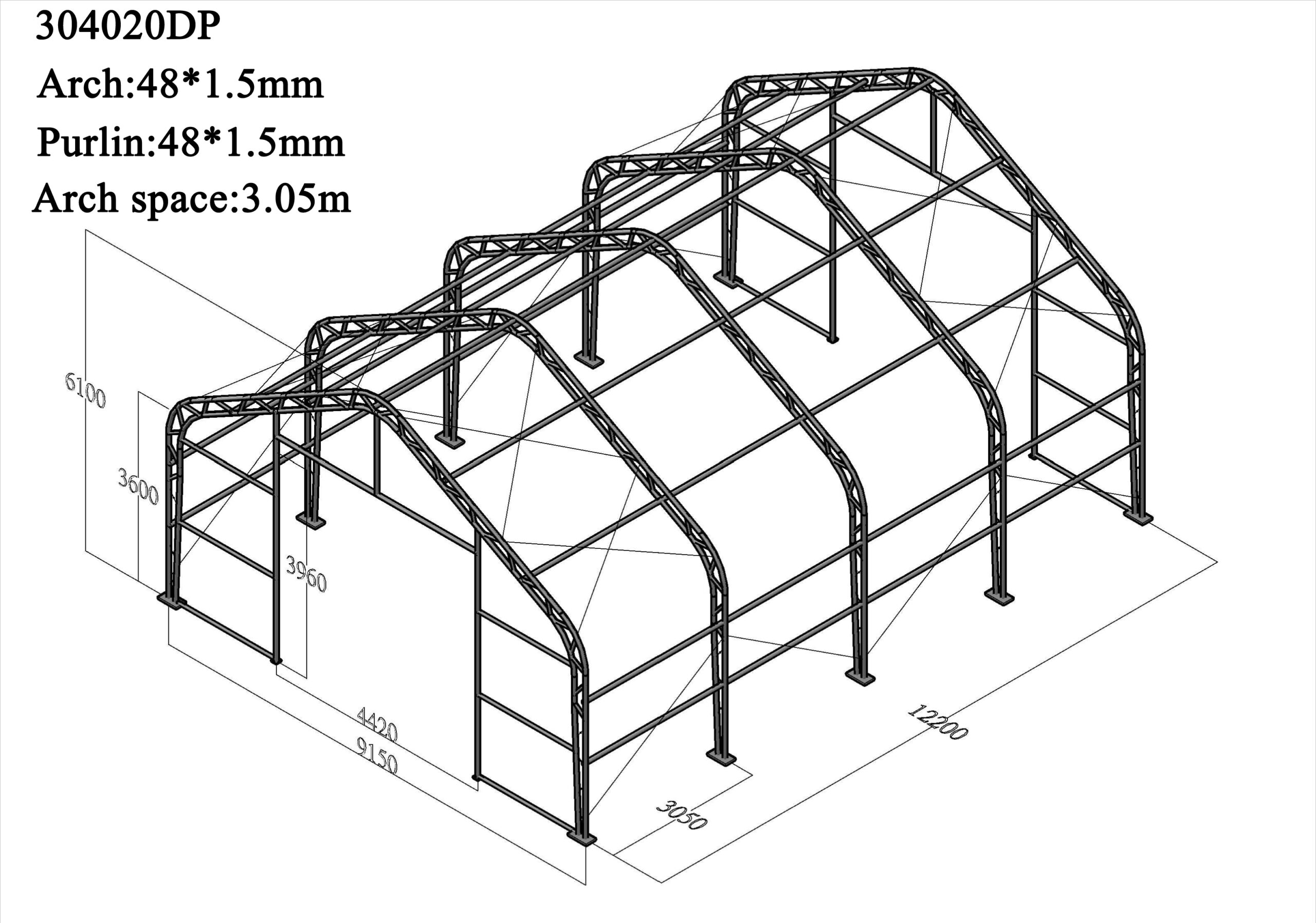

The basis of its strength are arched tubes with a diameter of ø 48 × 1.5 mm , which easily cope with adverse weather conditions, including strong winds. Together with the same dimensions of the connecting parts , they create a durable supporting structure that can cope with long-term physical loads and climatic fluctuations without any signs of weakening.

Premium PVC tarpaulin 900 g/m²

Every detail of this hall has been crafted with durability and resistance in mind. Both the structure and the canvas are designed to withstand time and the elements – for up to 25 years.

The PVC tarpaulin with a high grammage of 900 g/m² is one of the most reliable solutions on the market . It consists of three layers: the inner one is made of a strong, inelastic polyester fabric, which is covered with layers of durable PVC on both sides.

This multi-layer composition guarantees not only impermeability, but also maximum protection against tearing, deformation and UV radiation.

Benefits of this premium tarpaulin

  • It can withstand winds of up to 100 km/h and thicker layers of snow without any problems .
  • It meets strict fire standards and is classified as fire reaction class B.
  • It doesn't matter whether it is hit by rain, frost or summer heat – the tarpaulin remains strong, dimensionally stable and functional all year round.
  • In case of damage, the tarpaulin can be easily repaired by welding – there is no need to replace the entire tarpaulin.

There are mechanically operated entrance doors on both front sides of the hall. This practical detail significantly simplifies handling – whether it is storing materials, equipment or everyday entry and exit. If you prefer greater comfort, you can optionally order an electrically operated gate for the hall for even more convenient operation.

When purchasing this hall, we can also provide you with complete professional installation, carried out by our trained technicians.
