Saddle hall

10m
x
9.15m
x
5.2m

Saddle hall 10m x 9.15m x 5.2m

10m
x
9.15m
x
5.2m
  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
In stock
Delivery throughout Europe

€5,690

excl. VAT
6 999 € incl. VAT

Vous avez des

questions sur le produit ? Nous sommes là pour vous aider. Damián Halamček, MBA – Responsable
commercial +421 904 687 065 Du lundi au dimanche, de 7 h à 20 h
hagro@hagro.sk

Description and specifications

  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width10m
Length9.15m
Height5.2m
ColourGreen, White
Tarpaulin900 g/m2
Entrance width3.2 m
Entrance height3.2 m
Wind resistance100 km/h
Distance between beams3.05 m
Side wall height3m

Structure

Tubes en acier galvanisé

Les tubes en acier robustes qui garantissent la solidité du hall sont protégés contre la corrosion et la rouille grâce à une galvanisation soignée, ce qui leur confère une capacité de charge maximale et une longue durée de vie.

Les tubes en acier sont :

  • Conçus pour offrir une capacité de charge élevée et une grande résistance structurelle
  • Galvanisés à chaud et résistants à la corrosion et à la rouille
  • Résistants aux chocs et aux rayures

Caractéristiques techniques :

  • Garantie de 5 ans contre la rouille
  • Diamètre des tubes : ø 70 mm x 42 mm (selon la taille du hall)
  • Épaisseur du tube : environ 2 mm (varie selon le modèle)
Ancrage

Grâce au système d'ancrage fourni, vous pouvez installer le hall sur n'importe quelle surface SANS avoir besoin d'une dalle de fondation !

  • Chaque colonne est dotée d’une plaque de base robuste (avec des trous pré-percés pour l’ancrage), ce qui renforce la stabilité du hangar et simplifie son installation
  • Le hall est ancré à l'aide de chevilles pour barres d'armature galvanisées enfoncées dans le sol selon un angle spécifique, ce qui garantit sa solidité et sa résistance au vent
  • L'ancrage dans le béton est possible à l'aide de chevilles à enfoncer / d'ancrages chimiques (non fournis)
Arcs verticaux

La structure principale du hall est constituée d’arcs verticaux en acier reliés entre eux, formant ainsi une ossature solide et durable.

  • Des tubes en acier soigneusement façonnés, dotés de perçages précis pour le boulonnage
  • Des tuyaux pleins reliant les segments entre eux, associés à des tubes en acier, renforcent la résistance du hall au vent et à la neige
  • La structure ne comporte aucun pilier de soutien au centre du hall, ce qui optimise l’espace intérieur utilisable
Raccordement de tuyaux

Des éléments de liaison solides garantissent une grande stabilité globale et une résistance aux intempéries grâce au boulonnage soigné des différentes pièces structurelles à l'aide d'écrous autobloquants, ce qui réduit les coûts d'entretien.

Pièces constitutives des arches :

  • Emboîtées les unes dans les autres
  • Assemblées à l’aide de 2 boulons avec écrous autobloquants (c’est-à-dire deux fois)

Tubes horizontaux en acier :

  • Raccordés à l’arc vertical à l’aide d’un boulon robuste et d’un écrou autobloquant

Contreventement du hall :

  • Le hall bénéficie d’une résistance supplémentaire grâce à des tubes d’acier ou des câbles d’acier de contreventement (selon la structure), garantissant sa stabilité même en cas de vents violents
Possibilité d’extension

Vous pouvez agrandir le hall de la tente à volonté, « à l'infini », et ainsi augmenter la surface de stockage de celui-ci.

  • Les halls de même largeur peuvent être agrandis
  • Pour cela, les halls doivent être placés les uns derrière les autres
  • Le bord de la bâche du premier hall est rabattu sur la première arche du hall adjacent
  • Ensuite, les bâches sont fixées à l’aide de cordes ou de tendeurs à cliquet (selon la taille du hall)

PVC tarpaulin and entrances

Thanks to its dense inner fabric, the 3-layer PVC tarpaulin is extremely tear-resistant and lasts for a very long time. It is also flame-retardant and blocks harmful UV radiation.

What makes our tarpaulins stand out:

  • Thanks to quality materials they are 100% waterproof
  • Up to 3x more durable than standard PVC tarpaulins (resistant to rain, snow, mould, wind and damage)
  • They have a bottom “skirt” for protection against moisture and wind
  • They let natural light through and block UV radiation
  • 3-layer tarpaulin: the bottom and top layers are PVC, the middle layer is a non-elastic fabric

Specification:

  • Various tarpaulin weights (thicknesses): 650 g/m² (20-year lifespan), 750 g/m² (22-year lifespan), 900 g/m² (25-year lifespan)
  • Available in white or green.

Once the frame is assembled, the main (roof) tarpaulin is pulled over the structure and fixed to the arch bases using a robust ratchet tensioning system.

Installing the main tarpaulin is very easy:

  • The roof tarpaulin is pulled over the frame (using ropes)
  • The tarpaulin is then tied with rope to the first and last arch and tensioned using the straps and ratchets.
  • The end tarpaulins (front and rear entrance) are fixed to the frame with the supplied rope / straps
  • Our tent halls have a manufacturer-stated lifespan of 20 years or more.
  • Thanks to the special 3-layer PVC tarpaulin the hall is durable and shows almost no wear over time.
  • Thanks to the shape of the hall, neither dirt nor snow stays on it
  • High-quality zips and stainless brass eyelets
  • Easy-to-wash tarpaulin with minimal maintenance
  • The hall can also be heated or thermally insulated (by a third-party company)

The package also includes 2 end tarpaulins together with 2 entrance gates

Vehicle access and quick entry are ensured by:

  • Entrances on both ends of the hall (front and rear)
  • Extra-large door dimensions for vehicles
  • Roll-up doors opened with a manual winch / rope (depending on the hall type)
  • The option to cut any number and size of entrances into the hall (including the sides)
  • The option not to fit the front and rear ends, turning the hall into a “tunnel” and gaining the full entrance width and height

Installation

  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

Package contents

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Accessories

  • Entrances at both ends, opened with a manual winch
  • Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
  • Galvanised steel frame
  • Ground anchors for unpaved surfaces included
Width: 10m
Length: 9.15m
Height: 5.2m
Colour: Green, White
Tarpaulin: 900 g/m2
Entrance width: 3.2 m
Entrance height: 3.2 m
Wind resistance: 100 km/h
Distance between beams: 3.05 m
Side wall height: 3m
  • Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
  • Standard tools are all you need (hammer, spanner, ladder, knife…)
  • We recommend having 1 lifting device available (forklift, loader, etc.)
  • You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

  • Galvanised steel frame (including entrances)
  • Main PVC tarpaulin
  • Anchoring for unpaved ground (or concrete)
  • Complete assembly instructions in English
  • Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Extended product description

Sturdy protection for storage and work

A tarpaulin hall is a practical solution for anyone who needs a large covered space without a classic brick building . You can use it to store materials, equipment, machines, vehicles, tools or other equipment. Thanks to the construction and durable PVC tarpaulin, it provides reliable protection from rain, sun, wind and snow.

PVC tarpaulin 900 g/m²

A significant advantage is the robust PVC tarpaulin with a weight of 900 g/m² . It is made of strong textile reinforcement with PVC layers, thanks to which it retains its shape and withstands normal mechanical stress.

The tarpaulin is waterproof, tear-resistant and UV-resistant , and can withstand even the most demanding weather conditions. In case of damage, the material can be welded , which makes it easier to repair. The tarpaulin also provides protection against wind and snow loads.

Convenient access from both sides

Mechanical doors on both sides of the end walls make handling stored items easier. This allows you to use the hall more practically when driving vehicles or moving materials.

Durable steel construction

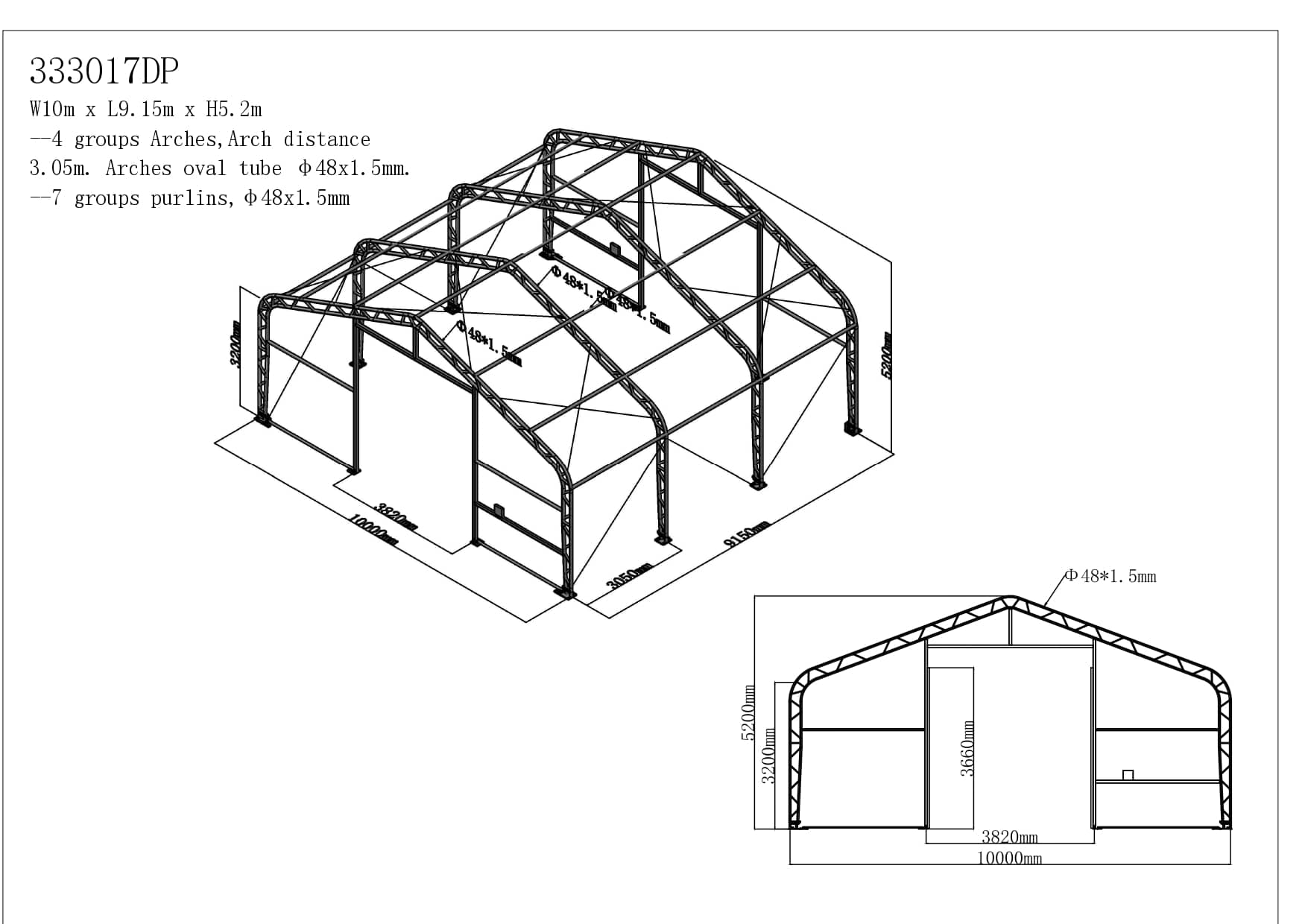

The base of the hall is a steel truss structure with a hot-dip galvanizing surface finish , which is designed for long-term use in outdoor environments. Both the arch and connecting elements have a diameter of 48 × 1.5 mm . Hot-dip galvanizing helps protect the steel from corrosion and contributes to the long service life of the entire hall.

The height of the straight side wall is 3.2 m , so you will have enough space to store bulky equipment or handle equipment.

Why choose this hall?

If you are looking for spacious, durable and long-lasting roofing , this tarpaulin hall is a universal solution for storage and everyday work use. The combination of steel construction and 900 g/m² PVC tarpaulin offers high durability and a declared lifespan of up to 25 years .
